CCTV Camera System Installation Options You Need to Know
CCTV camera systems are integrated surveillance solutions that capture, record, and enable remote review of video to protect homes and businesses. This guide explains the installation options, system types, costs, and maintenance choices you need to decide with confidence. Read on to learn how camera form factors and system architectures differ, how to plan a coverage map, the trade-offs between DIY and professional installation, transparent cost drivers, and practical maintenance workflows that reduce downtime. Many property owners struggle to match their security objectives to the right mix of cameras, recording hardware, and network infrastructure; this article solves that by laying out clear selection criteria, installation checklists, and troubleshooting steps. You will find direct comparisons of dome, bullet, PTZ, analog and IP cameras, step-by-step planning guidance, a balanced DIY vs. professional breakdown, cost component tables, and a maintenance schedule to keep systems reliable. Throughout the guide, we use terms like PoE, NVR, DVR, and AI analytics with concrete examples and placement recommendations so you can plan a system that meets legal and operational needs without overspending.
What Are the Different Types of CCTV Camera Systems?

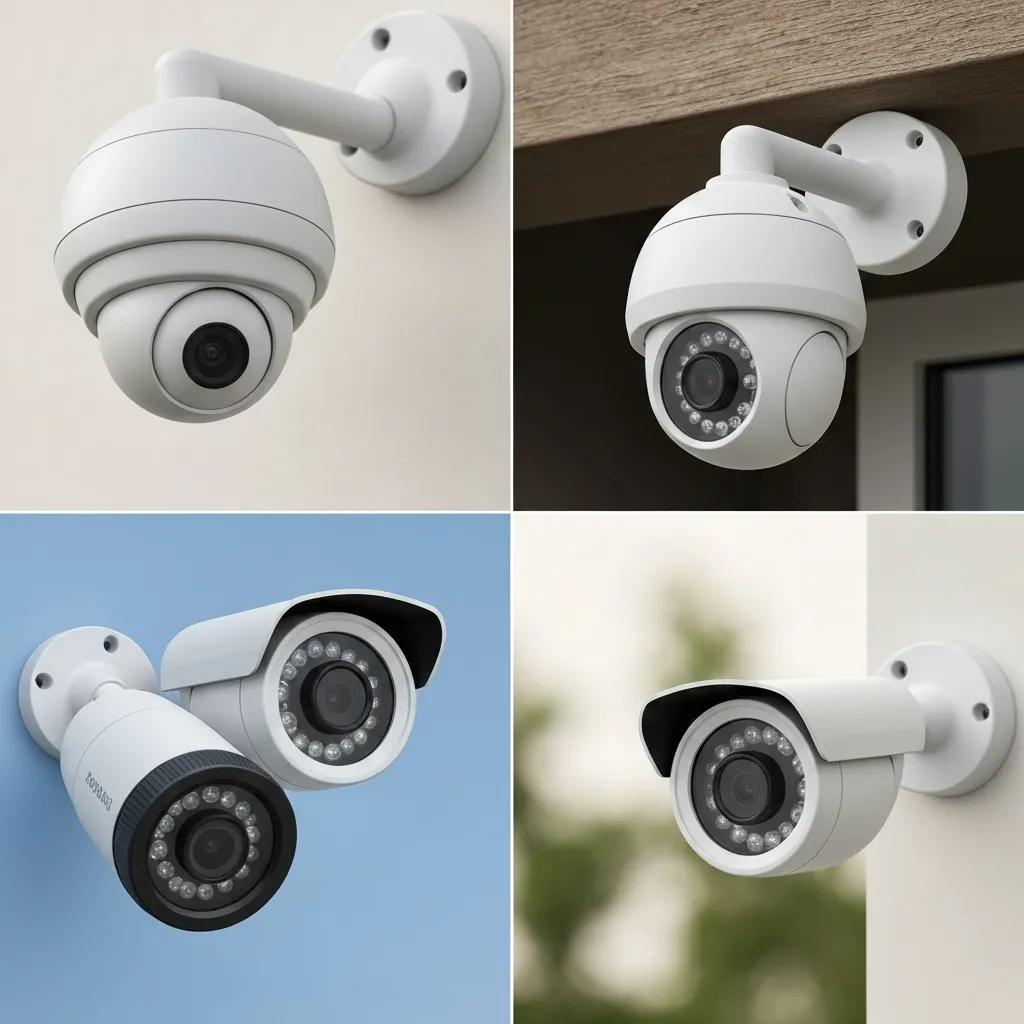

CCTV camera systems fall into several primary categories—analog (coaxial/DVR), IP/PoE (network/NVR), and wireless—with camera form factors including dome, bullet, and PTZ that suit different coverage needs and environments. Each approach differs in image quality, installation complexity, cabling requirements, and long-term scalability; choosing correctly starts with matching the camera type to the surveillance system to deliver the required coverage. The right selection yields clearer forensic footage, simplified cabling via PoE, and integration paths for remote monitoring and AI analytics, while the wrong match creates blind spots and higher maintenance. Below is a comparison table summarizing the common camera types, their best uses, and approximate cost brackets to help you decide by scenario and budget.
Dome cameras are best suited for indoor, low-profile areas with a typical range of 10–30 meters. Their main advantages include vandal resistance and wide-angle coverage, although they lack strong long-range zoom. Bullet cameras work well for outdoor perimeters with a 15–40 meter range and offer visible deterrence and longer focal-length options, but they are more exposed to vandalism. PTZ cameras are ideal for large outdoor spaces or parking areas, providing 20–100+ meter coverage with full pan, tilt, and zoom control for active tracking; however, they are more expensive and often require operator input or AI support. IP (PoE) cameras suit sites needing high resolution and analytics, covering 5–50+ meters, and offer easy PoE power delivery along with superior image quality; their drawback is the need for proper network configuration. Thermal cameras are designed for night or foggy perimeter detection with a range of 50–300 meters, detecting heat signatures effectively, but they tend to be expensive and offer lower detail for identification.
This comparison clarifies that dome and bullet cameras are lower-cost options for typical residential and retail needs, while PTZ and thermal cameras are specialist options that raise system complexity and price. Selecting the right camera type depends on the coverage objective, environmental constraints, and whether you require features like night vision or AI analytics.
What Are the Features and Benefits of Dome, Bullet, PTZ, and IP Cameras?
Dome, bullet, PTZ, and IP cameras each provide distinct technical benefits: dome cameras emphasize vandal resistance and discreet coverage, bullet cameras offer long-range optics for perimeter observation, PTZ cameras deliver active tracking and zoom, and IP cameras enable higher resolutions and analytics via networked infrastructure. Dome cameras typically include wide fields of view and infrared illumination for low-light interior monitoring, while bullet cameras use varifocal lenses and stronger housings for outdoor weatherproofing. PTZ cameras combine mechanical movement with presets to cover expansive areas but require either human control or AI-based auto-tracking to reach their potential. IP cameras, as part of a PoE/NVR architecture, support features such as motion metadata, AI analytics, and direct firmware updates, which influence installation choices and storage planning.
These feature trade-offs guide placement and hardware selection: for example, pairing an IP camera with local NVR storage helps retain high-resolution footage, whereas a mixed analog/IP approach may suit phased upgrades on budget-constrained sites. Understanding these operational differences prepares you for the wiring and network decisions covered next.
How Do Wireless and Analog CCTV Systems Compare?
Wireless (Wi-Fi or cellular), analog (coax to DVR), and IP/PoE systems differ in reliability, latency, image quality, and installation trade-offs: analog systems are simple and cost-effective for basic coverage but are limited in resolution, while IP/PoE systems provide higher resolution, centralized power, and analytics at the expense of network planning. Wireless systems suit temporary or hard-to-wire locations and offer fast deployment, but they can suffer from interference, require stronger on-site Wi-Fi, and may incur recurring cellular costs for off-grid sites. Analog setups remain attractive where coax infrastructure already exists, whereas PoE simplifies installs by carrying power and data over Cat5e/Cat6 cabling to IP cameras.
Choosing between these architectures should follow a site survey that weighs existing cabling, expected image resolution, and the need for remote access or AI analytics. For many residential installs, IP/PoE offers the best balance of future-proofing and quality; for legacy systems, analog DVR upgrades can be staged affordably.
Implementation and Advantages of IP Video Surveillance Systems
The paper discusses the evolution and implementation of IP video surveillance systems, highlighting the transition from traditional analog systems to modern digital solutions. It emphasizes the necessity for security technology to evolve in tandem with sophisticated threats faced by security agencies, particularly in developing nations. By illustrating the advantages of IP-based technologies—such as flexibility, improved performance, and the ability to transmit images across various networks—the paper asserts that these systems are integral for enhancing security measures in multiple sectors.
On the Implementation of IP Video Surveillance Systems, FO OLOWONONI, 2011
How Do You Plan and Prepare for CCTV Camera Installation?
Planning CCTV installation begins with a systematic security needs assessment: map entrances, sightlines, and vulnerable assets, identify likely angles of approach, and decide on retention policies for recorded footage. The planning phase must align camera placement with power and network availability (PoE switches, conduit paths, or power injectors), and consider legal and privacy requirements such as signage and audio recording restrictions. A clear plan reduces extra cable runs and expensive rework, and it also informs equipment choices—whether to use NVR with high-capacity HDDs for long retention or edge recording on IP cameras. Below is a practical checklist to guide a property walkthrough and ensure your installation plan captures essential details.
Use this checklist during a security walkthrough:
Inspect entry points and high-value zones for camera placement.
Note ambient light and reflective surfaces that affect night vision.
Confirm power/network access and potential cable routes.
These steps prioritize coverage and minimize blind spots, enabling a detailed installation plan that ties into both physical and legal considerations for compliant surveillance deployment.
How to Assess Your Security Needs and Identify Vulnerable Areas?
A methodical assessment defines coverage objectives by identifying high-risk zones: entrances/exits, cash registers, loading docks, and secluded perimeter sections. Start with a daytime and nighttime walkthrough to observe lighting changes, identify glare sources, and mark sightline obstructions such as trees or signage. Decide whether identification (facial recognition) or detection (motion alerts) is the priority—this determines resolution and lens selection; for identification, higher resolution and closer mounting are essential. Create a simple map marking desired camera fields of view and overlapping coverage to prevent blind spots and to ensure that critical areas have redundant observation.
This approach helps estimate camera counts and types for realistic budget planning, which leads directly into specific placement best practices and compliance measures.
What Are the Best Practices for Camera Placement and Legal Compliance?
Best practices for placement include mounting cameras at heights that balance protection from tampering with adequate identification—typically 8–12 feet for external cameras—and angling them to avoid direct streetlights or sun glare that degrade image quality. Overlap camera fields of view by 10–20% so objects moving between cameras are tracked seamlessly, and use a mix of wide-angle and telephoto lenses to combine situational awareness with facial detail. Legally, post visible signage where required, avoid recording audio unless compliant with local wiretapping laws, and document retention policies for requests or audits.
Following these practical placement rules minimizes false negatives and ensures footage will be admissible and useful while maintaining privacy obligations and operational robustness.
What Are Your Options for DIY vs. Professional CCTV Installation?
Deciding between DIY and professional installation depends on your technical skill, tolerance for risk, and the complexity of the site: DIY can be cost-effective for simple installs on single-site properties, while professional services deliver thorough surveys, reliable wiring, warranty coverage, and integration with monitoring or emergency services. DIY installations demand familiarity with cabling, network configuration, and mounting, and mistakes—such as improper grounding or insecure network setups—can compromise system reliability. Professional installers provide tailored assessments, code-compliant installations, and options for 24/7 monitoring and system integration, which reduce long-term maintenance and false alarms.
Below is an EAV-style comparison to help you weigh these approaches and choose the best path based on skills, time, and risk appetite.
DIY installation requires moderate technical skill and tools such as a drill, anchors, Cat5e/Cat6 cabling, and a PoE switch. It typically takes 4–16 hours, offers variable reliability, includes only manufacturer warranties, and has low upfront costs since labor is not included. Professional installation requires no skill from the property owner because installers bring the necessary tools and handle any required permits. These jobs normally take 4–12 hours depending on the site, deliver high reliability, include installer warranties and ongoing support, and have higher upfront costs that include labor. A hybrid approach—using a professional survey followed by DIY work—requires moderate skill and homeowner tools, has variable completion times, offers medium-high reliability, includes mixed warranty coverage, and results in mid-range overall cost.
The table clarifies that professionals typically deliver higher reliability and warranty coverage, while DIY suits experienced owners on tight budgets who can manage network security and mounting. Hybrid options let you get a pro survey and then implement lower-risk elements yourself.
To educate and inform on pest control services
Reddi Security offers professional installation and comprehensive security solutions for residential and commercial clients, including tailored security systems, surveillance cameras (CCTV), burglar alarms, motion detectors, home automation, 24/7 monitoring, remote access capabilities, and integration with emergency services. Reddi Security emphasizes customized solutions based on detailed property assessments and notes potential customers may receive up to a 20 percent discount on home insurance upon installing a Reddi Security System. If you prefer a turnkey approach, experienced installers can handle accurate coverage mapping, secure wiring, system configuration, and monitoring setup to ensure longevity and compliance.
What Are the Basic Steps and Tools Needed for DIY CCTV Installation?
DIY installation follows a repeatable workflow: plan coverage and cable routes, mount cameras with appropriate anchors, run coax or Ethernet and secure PoE power, configure DVR/NVR settings, and test remote access and alerts. Essential tools include a drill with masonry bits, screwdrivers, cable testers, network crimpers, a PoE switch or injector, and a ladder rated for the work. During wiring, label both ends of each cable, maintain proper bend radii for Cat5e/Cat6, and terminate cables cleanly to avoid intermittent network issues. Always power down devices before making wiring changes and test each camera on the bench before final mounting to catch defective units early.
Plan and map: Draw coverage and mark mounting points.
Install and wire: Secure mounts, run cables, and connect to PoE/NVR.
Configure and test: Set IP addresses, enable motion zones, verify remote access.
These practical steps and a disciplined approach reduce common DIY errors and highlight when to pause and call a professional.
What Are the Benefits of Professional Installation Services by Experts?
Professional installation delivers precise coverage planning, secure cable routing, adherence to local codes, and integration with monitoring and emergency services that DIY rarely matches. Installers apply best practices for grounding, surge protection, and network segmentation to protect recorded data and reduce false alarms. A professional assessment tailors camera selection—balancing dome, bullet, PTZ, and IP options—with storage sizing and AI analytics where appropriate, optimizing total system cost over time. The added value includes installer warranties and support contracts, and the potential for insurance discounts when systems meet underwriter criteria.
Choosing an installer is often justified for multi-site, high-value, or complex integration projects where the cost of downtime or misconfiguration exceeds the installation fee. Reddi Security’s tailored assessments and monitoring options are examples of professional services that streamline both installation and long-term support without burdening the property owner.
How Much Does CCTV Camera Installation Cost and What Factors Affect Pricing?
CCTV installation cost comprises hardware, labor, configuration, travel/inspection fees, and optional recurring monitoring or cloud storage subscriptions; each component varies with camera type, site complexity, and desired feature set like AI analytics or LPR. Equipment ranges from low-cost analog cameras to high-resolution IP or thermal units; labor increases with long cable runs, multiple mounting surfaces, or the need for conduit and permits. Additional costs include storage (larger HDDs for higher resolution or longer retention), PoE switches and NVR capacity, and setup time for remote access and mobile apps. Below is an EAV breakdown of typical cost components to make pricing transparent.
Camera hardware generally ranges from $50 to $1,500 per unit depending on the type and features. Recorders, such as DVRs or NVRs, typically cost between $150 and $2,000. Cabling and connectors for data and power delivery usually range from $50 to $500. Labor and installation fees vary widely, from $200 to over $2,000 depending on complexity. Ongoing monitoring or cloud subscription services cost approximately $10–$100 per month. Together, these components create the total installation cost, which increases with camera count, resolution, and system complexity.
Actual site quotes depend on camera count, resolution, retention period, and any integration with alarms or building systems. For example, a basic 4-camera home IP/PoE system with an NVR and modest storage typically sits at the lower end of these ranges, while 16-camera commercial systems with analytics and redundant storage approach the higher end.
For readers interested in a custom, site-specific estimate, Reddi Security performs tailored property assessments and provides quotes that account for exact equipment choices and installation complexity; qualifying installations may also be eligible for up to a 20 percent home insurance discount when system specifications meet insurer criteria.
What Are the Typical Cost Components for Equipment and Labor?
Equipment costs include the cameras themselves, the DVR or NVR, storage drives sized for desired retention, PoE switches, and mounting hardware, while labor covers the physical installation, cable routing, and system configuration. One-time hardware purchases can be amplified by recurring fees for cloud backups, analytics subscriptions, or 24/7 professional monitoring services. Brands and feature levels (e.g., 4K vs 1080p, built-in AI, weatherproofing) materially influence equipment pricing, and labor rates scale with access complexity, working at height, or multi-site coordination. Estimating storage requires multiplying camera bitrate by retention days, which informs HDD sizing and NVR selection.
These component distinctions help homeowners and managers budget appropriately and decide whether capital expense or ongoing service fees better match their security strategy.
How Does System Complexity and Number of Cameras Influence Price?
Each additional camera increases material costs and often adds incremental labor due to additional mounting time, cable runs, and potential network switch upgrades; at scale, systems require higher-capacity NVRs, PoE switches, and possibly VLAN segmentation to preserve network performance. Complex integrations—such as AI analytics, license plate recognition, multi-site centralization, or integration with access control and alarm systems—introduce engineering time and specialized hardware that significantly raise project cost. Long cable runs, rooftop access, and conduit installation are labor-intensive items that frequently push installations into higher labor brackets.
When planning, evaluate whether advanced features (AI-based analytics, long-term storage, redundant recording) are mission-critical, because their benefits must justify the added cost. For many properties, a phased approach—starting with core cameras and adding analytics later—spreads cost while preserving upgrade paths.
Cost-Benefit Analysis of Proactive CCTV Monitoring and Police Patrol for Crime Reduction
This study presents a cost–benefit analysis of an intervention pairing proactive CCTV monitoring with directed police patrol in Newark, NJ. A recent randomized control trial found that the strategy generated significant crime reductions in treatment areas relative to control areas. The current study focuses on the financial implications of the experimental strategy through a cost–benefit analysis. The study begins by measuring the costs and benefits associated with the experimental strategy, the findings of which can inform agencies with existing CCTV infrastructure. Follow-up analyses measure the costs and benefits of the intervention for agencies absent existing CCTV infrastructure, meaning a CCTV system would have to be funded in addition to the intervention outputs. Alongside overall benefits, this study presents the tangible cost savings afforded to the Criminal Justice system as well as to each of the separate criminal justice (CJ) system components: Policing, Courts, and Corrections.
The financial implications of merging proactive CCTV monitoring and directed police patrol: A cost–benefit analysis, EL Piza, 2016
What Are the Essential Components of a CCTV Camera System?
A CCTV system is composed of cameras, a recorder (DVR for analog or NVR for IP), cabling and power infrastructure (PoE or separate supplies), storage media, and management interfaces (mobile apps, VMS, or cloud portals). DVRs receive coaxial analog signals and encode them, while NVRs ingest network streams from IP cameras; PoE switches simplify installation by combining power and data over Ethernet. Storage decisions hinge on resolution, frame rate, and retention period—higher resolution and longer retention need larger HDDs or cloud subscriptions. Management layers—mobile remote access, user permissions, and AI analytics—determine how footage is searched and how alerts are generated.
A DVR records analog video feeds and is compatible only with analog or coax-based cameras. An NVR records digital IP camera streams and is designed for PoE or IP-based systems. A PoE switch supplies both power and network connectivity through Cat5e or Cat6 cabling. Coaxial cable is used to transmit signal and power in analog systems, while Ethernet cabling is required for PoE setups. Storage devices such as HDDs or SSDs hold recorded footage for the required retention period, and their size must be calculated based on bitrate and the number of days of storage needed.
Understanding these component roles helps you weigh upgrade paths—such as migrating from analog DVR to IP/NVR gradually while reusing mounts or conduit.
What Roles Do DVR, NVR, Cables, and Storage Play in CCTV Systems?
DVRs and NVRs are the recording backbone: DVRs process analog signals and compress them for storage, while NVRs record digital streams, often at higher bitrates and resolutions. Cat5e/Cat6 Ethernet cabling with PoE supplies both data and power to IP cameras, simplifying installations and centralizing power management, whereas coaxial cable is used in analog systems and may require separate power runs. Storage sizing hinges on camera resolution, compression codecs, frame rate, and retention days; choosing the right drive multipliers prevents overwriting critical footage prematurely and maintains system reliability. Proper cabling and recorder selection ensure compatibility and predictable performance.
These compatibility rules reduce integration errors and support a smoother installation process with predictable operational costs.
How Do Features Like Night Vision, Remote Access, and AI Analytics Enhance Security?
Night vision (IR illumination) extends detection into low-light conditions and is essential for unlit perimeters, while remote access enables property owners and managers to view live and recorded video from mobile apps for rapid incident response. AI analytics—motion classification, object detection, and behavior analysis—cuts false positives and surfaces meaningful events, lowering monitoring costs and improving situational awareness. Each advanced feature increases requirements for bandwidth, storage, and camera processing power; for instance, AI analytics often benefit from edge-capable IP cameras or server-side processing to handle model workloads. Deciding which features to enable depends on the balance between required detection fidelity and acceptable infrastructure costs.
Selecting the correct combination of these features maximizes detection performance while managing total cost of ownership.
How Do You Maintain and Troubleshoot Your CCTV Camera System?
Regular maintenance and a straightforward troubleshooting routine keep CCTV systems reliable: schedule monthly visual checks, quarterly firmware and recording audits, and annual professional inspections for wiring and storage integrity. Common issues include power loss, network drops, poor image quality, and recording gaps; troubleshooting proceeds from power and cable checks to network diagnostics and camera swap tests to isolate faulty components. A preventive maintenance calendar minimizes emergency repairs and preserves chain-of-evidence quality for incident investigations. When upgrades are needed—higher resolution, analytics, or longer retention—plan staged deployments to avoid sudden infrastructure overloads.
Below is a maintenance checklist you can adopt to reduce system downtime and extend equipment life.
Check camera housings, mounts, and lenses for damage or obstructions monthly.
Verify recording schedules and storage capacity quarterly and archive older footage as needed.
Update firmware and patch VMS/NVR software in a controlled maintenance window.
These recurring tasks catch degradation early, maintain reliable recording, and preserve the system’s value over time.
What Are Common CCTV Issues and How Can You Troubleshoot Them?
Typical problems include cameras showing no video, intermittent network drops, poor image clarity, and missing recordings; a prioritized troubleshooting workflow starts with power and connection checks, then moves to swap tests and log reviews. Confirm power at the PoE switch or power injector, inspect cable terminations for corrosion or loose connections, and use a network tester to validate Ethernet continuity and PoE delivery. If the camera image is poor, clean lenses, check IR reflection and exposure settings, and verify firmware; if recordings are missing, review NVR logs and confirm scheduled overwrites aren’t set too aggressively. Escalate to professional support when hardware swap tests fail or when complex network segmentation prevents straightforward diagnosis.
These quick checks isolate common faults and avoid unnecessary component replacements.
How Often Should You Perform Maintenance and System Upgrades?
Adopt a simple maintenance cadence: monthly visual inspections, quarterly software/recording audits, and annual professional inspections for physical wiring and storage integrity. Upgrade triggers include end-of-life firmware notices, increasing false positives that analytics cannot correct, or changing security needs that require higher resolution or additional camera coverage.
Scheduling professional checkups annually ensures warranty conditions are met and uncovers aging power supplies, failing drives, or environmental wear that DIY checks may miss; planned upgrades staged over time smooth capital expenses and maintain operational continuity.
